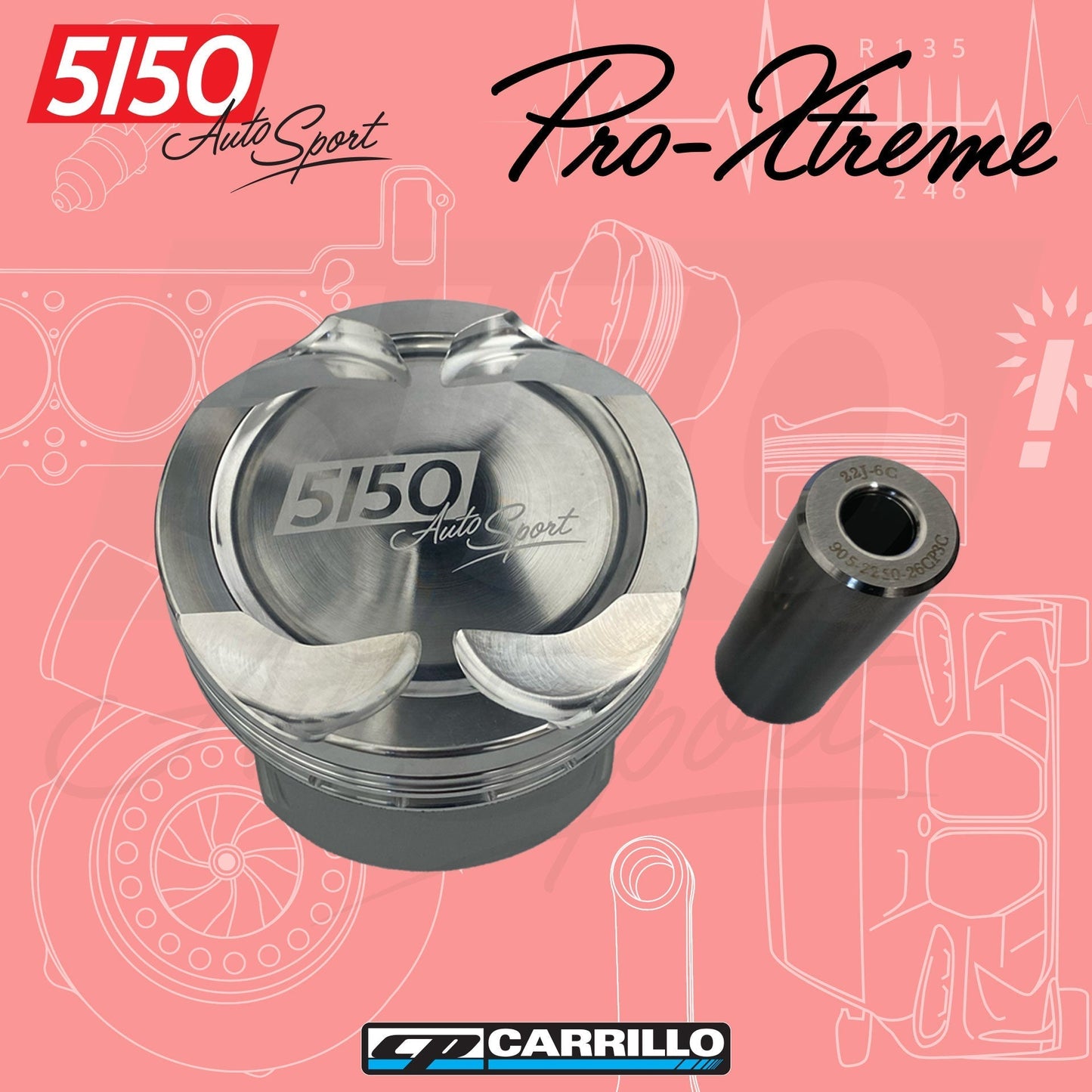

CP Forged Piston Set, BMW S54 Pro-Xtreme

The 5150 AutoSport Pro-Xtreme Forged Pistons, made by CP-Carrillo, are designed to handle extreme horsepower and high RPM applications for BMW S54 engines with 139 mm Rods. Constructed from high-strength, aircraft-grade steel, these pistons are engineered to withstand the forces generated by high-powered engines.

The Pro-Xtreme design is specifically tailored to handle up to 2000 horsepower, making these pistons suitable for high-performance turbo/drag racing or street/strip applications. They are also designed to handle high engine speeds of up to 9500 RPM, which is necessary for achieving maximum power output.

Each piston is precisely fabricated to meet the demands of high-performance engines using advanced manufacturing techniques such as computer-aided design (CAD) and finite element analysis (FEA). The Pro-Xtreme Pistons are designed to be durable, reliable, and capable of handling the extreme stresses and forces generated by high-horsepower and high-rpm engines.

Pro-Xtreme Piston Sets Include:

- Pistons
- PVD Rings (Install Guide Here)
- Pins
- Locks
- Spec Sheet

Please note, the Pro-Xtreme Piston is engineered to handle up to 2000HP, however, the Standard Wrist Pin can only handle 800-850HP. To exceed 850HP, it is a MUST to use Heavy Duty pins.

BMW S54 Applications:

BMW 3 Series

2000-2006     E46     M3

BMW Z3 Series

2001-2002     Z3     M

BMW Z4 Series

2006-2008     Z4     M
