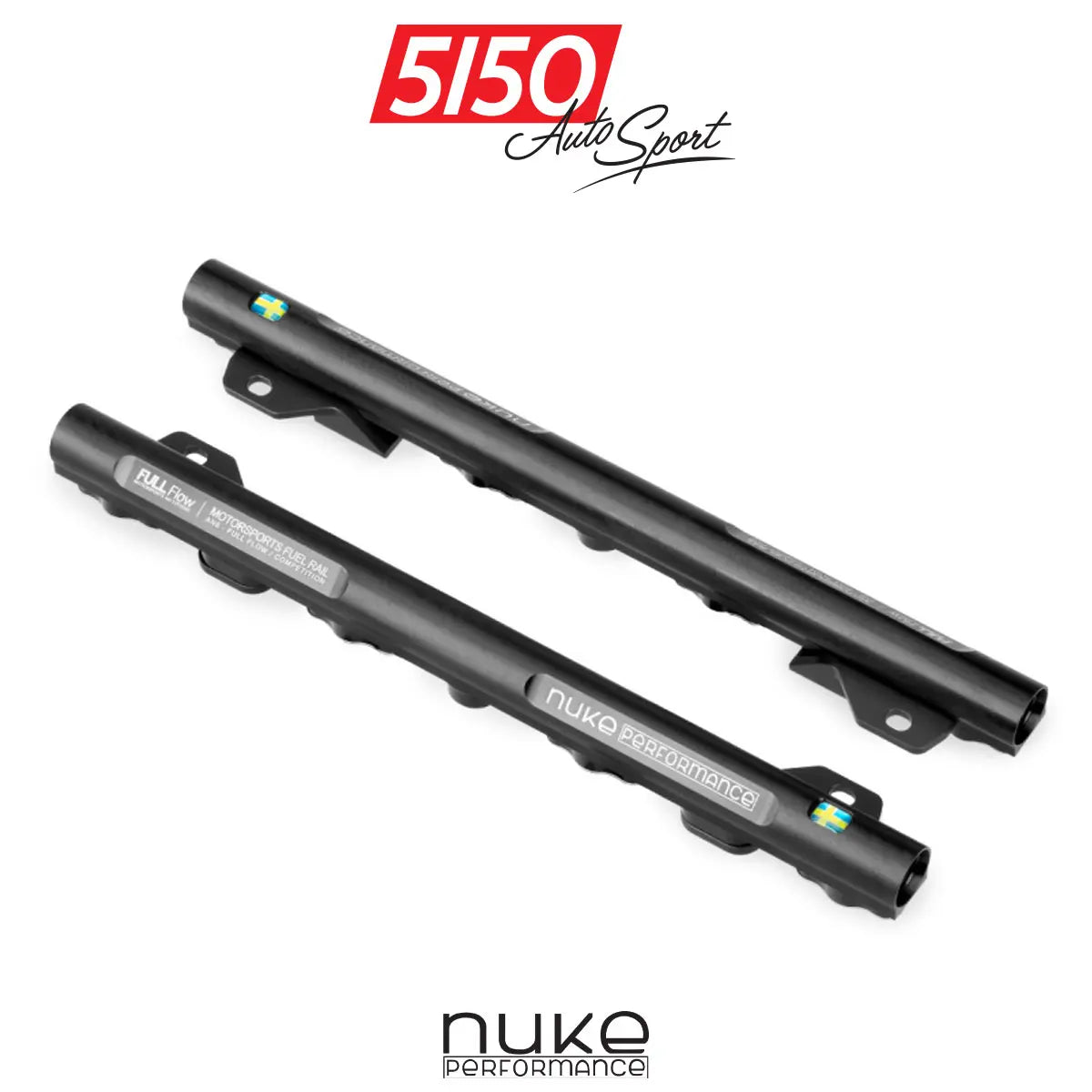

BMW M60 M62 Fuel Rail

Upgrade your BMW V8 fuel system with the Nuke Performance Billet Fuel Rail for M60 and M62 engines, engineered for high-flow delivery, modern injector compatibility, and uncompromising motorsport safety.

Designed to fit all BMW M60 and M62 variants, including M60B30, M60B40, M62B35, M62B44, and TU versions, this fuel rail is precision-machined from lightweight aluminum and optimized for high horsepower builds running gasoline, ethanol, or methanol—including E85 and E100.

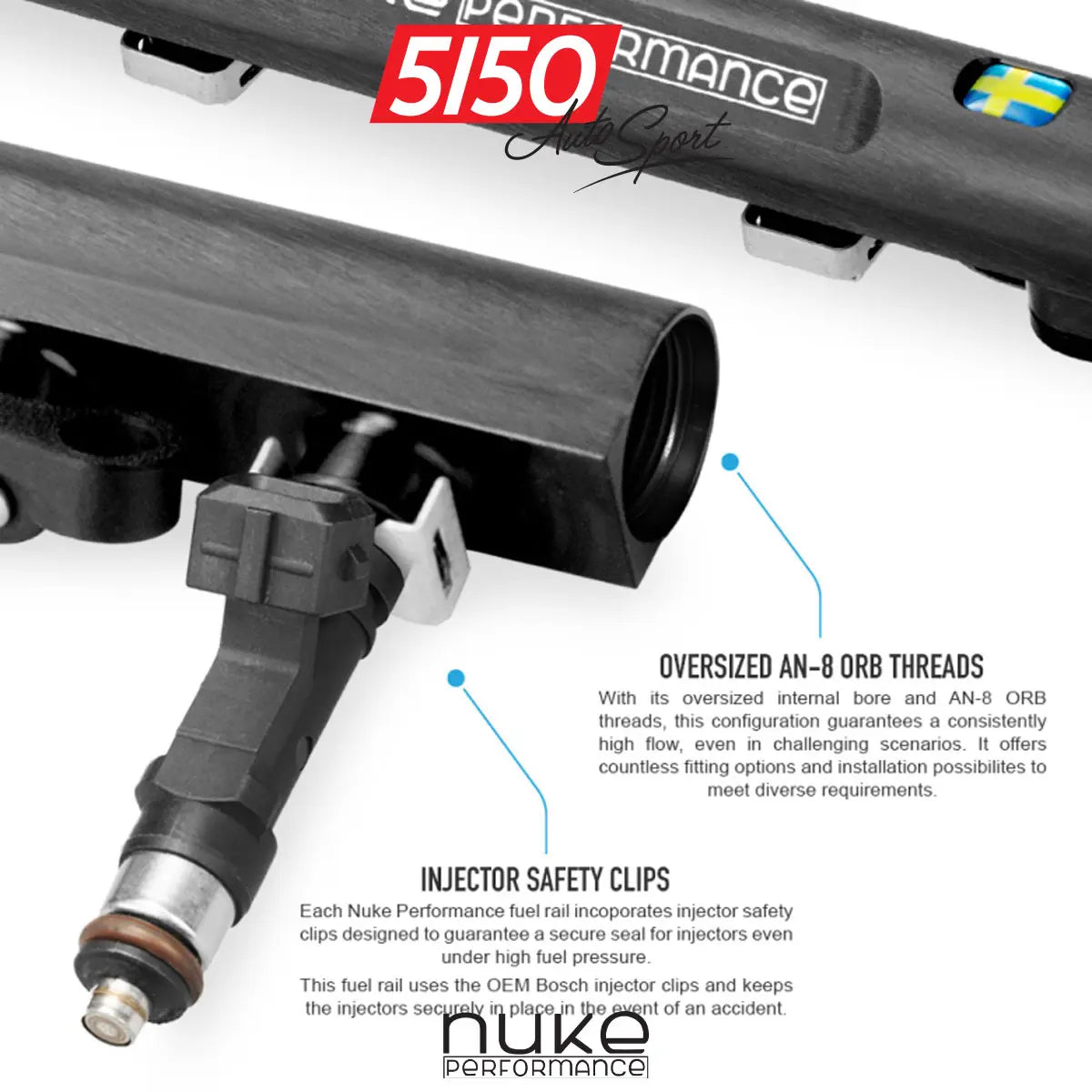

This twin-rail setup features oversized internal passages, AN-8 ORB inlet/outlet ports, and an optional AN-6 ORB side port—offering flexible fuel routing and return line or sensor integration. Nuke’s exclusive injector safety clips guarantee a leak-free connection under extreme conditions, protecting against injector blowout during pressure spikes or accidents.

Compatibility:

• BMW M60B30 (1992–1996)
• BMW M60B40 (1992–1996)
• BMW M62B35 (1996–1998)
• BMW M62TUB35 (1998–2003)
• BMW M62B44 (1996–1999)
• BMW M62TUB44 (1998–2005)

Key Features:

• Fits all BMW M60 and M62 V8 engines
• Compatible with Bosch EV14L 14mm injectors
• Dual AN-8 ORB main ports for high flow
• Side AN-6 ORB port for optional fuel return or sensor
• Includes custom mounting brackets for M60/M62 intakes
• Lightweight billet aluminum design
• E85, methanol, and gasoline compatible
• Includes Nuke Performance injector safety clips
• Designed, developed, and manufactured in Sweden

What’s Included:

• 2 × AN-8 ORB fuel rail profiles for BMW M60/M62
• 4 × CNC-machined aluminum brackets
• 2 × AN-6 ORB side port plugs
• 8 × Injector safety clips
• Complete stainless mounting hardware

Technical Specifications:

• Length: 339 mm (13.35") each
• Height: 32 mm (1.25")
• Weight: 293 g (10.34 oz) each
• Threads: AN-8 ORB main ports, AN-6 ORB side ports
• Fuel Compatibility: Petrol, Ethanol, Methanol, E85, E100
• Injector Compatibility: Bosch EV14L (14mm)
